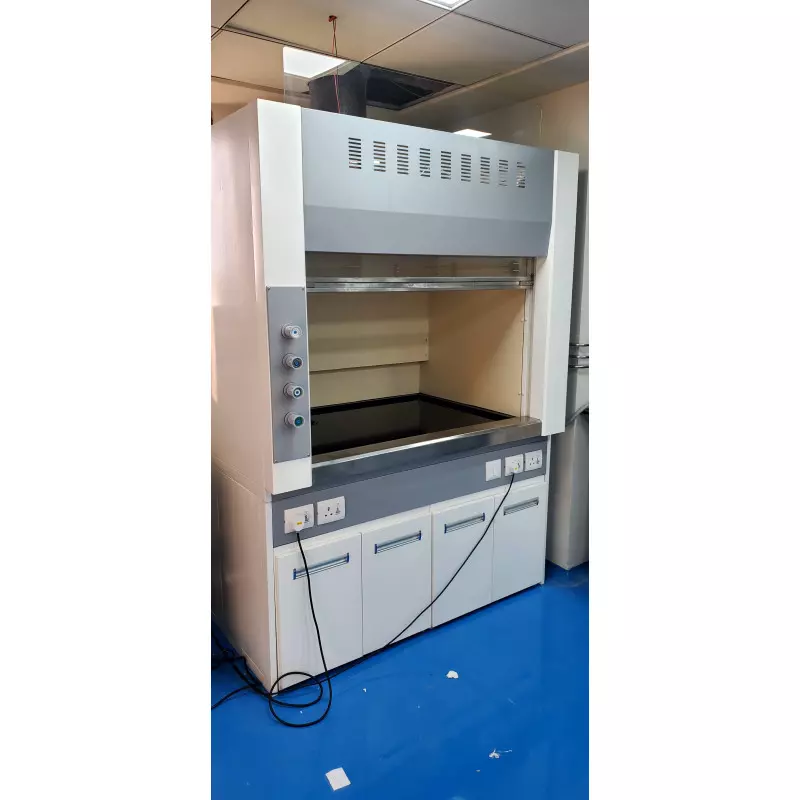

Jay Veer Lab Solution’s Bench Mounted Fume Hood is a compact and efficient solution for laboratories requiring localized fume extraction on existing workbenches or modular tables. Designed to safely contain and exhaust hazardous vapors, acids, solvents, and powders, this fume hood is ideal for limited-space laboratories or workstation-specific applications.
Key Features:Structure:
Free-standing or placed on existing lab benchSuitable for light to medium chemical usageCompact, ergonomic design for user comfortBody Construction:CRCA / GI sheet with epoxy powder coating (60–70 microns)Optional: Full SS 304 version for cleanroom or corrosive applicationsInner Chamber Lining Options:Epoxy Coated SheetFRP LiningPolypropylene (PP)SS 304 (optional)Worktop Options:18–20 mm Black Granite (Standard)Epoxy Resin / Phenolic Resin (Chemical Resistant)SS 304 (For Clean Applications)Sash (Front Shutter):Vertical sliding counterbalanced sashMade from 5–6 mm toughened glass or polycarbonateOptional: Motorized sash with safety interlocksLighting:Vapor-proof LED light fixture, ≥ 400 Lux inside chamberExhaust System:PP/FRP/SS Blower (acid-proof)Ducting in PP/FRP/GI/HDPE as requiredFace velocity: 80–100 FPMUtility Provisions:Water tap, sink (PP/SS), gas/air/vacuum valvesElectrical sockets with MCB protectionOptional digital airflow monitor
Standard Sizes:ModelWidthDepthHeight (Overall)BMFH-900900 mm700 mm1200 mmBMFH-12001200 mm750 mm1200 mmBMFH-15001500 mm750 mm1200 mm Can be mounted on Jay Veer Wall Bench, Island Bench, or any stable surface.
Color & Finish Options:Body: Light Grey / White / Blue-GreyInner lining: Black / White (as per material)Worktop: Black Granite / Epoxy Grey / SS FinishLogo: Custom branding with Jay Veer Lab Solution
Safety & Compliance:Sash counterweight safety testedChemical and fire-resistant coatings
Applications:Educational LaboratoriesR&D LabsPharmaceutical QA/QCMicrobiology and Pathology LabsChemical and Agrochemical Testing Labs
Contact:Jay Veer Lab Solution Odhav, Ahmedabad, Gujarat www.jayveerlabsolution.com info@jayveerlabsolution.com +91-7622883053
