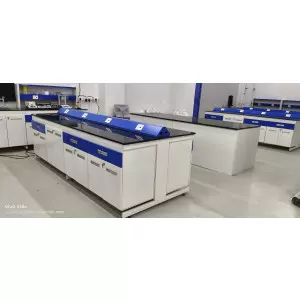

Modular Island Laboratory Bench
Modular Island Laboratory Bench Details
Product Overview:
The Laboratory Island Bench from Jay Veer Lab Solution is designed for efficient workflow and maximum space utilization. Positioned centrally in the laboratory, it allows multi-user access from both sides, making it ideal for group tasks, experiments, and collaborative work in research and industrial labs.
Key Features:
Configuration:
Double-sided workstation (access from both sides)
Can integrate Reagent Rack, Sink Unit, and Electrical Raceway in the center
Available in C-Frame, Pedestal, or Skirting-mounted base options
Construction Materials:
Frame: MS Powder Coated / SS 304 (optional)
Cabinet Body: CRCA / GI Sheet with Epoxy Coating (60–70 microns)
Handles: SS / Aluminium
Drawers/Shutters: Soft-close with lock option
Worktop Options:
Black Granite (18–20 mm) – standard
Epoxy Resin / Phenolic Resin – chemical resistant
Glazed Ceramic Tiles – for educational & dry labs
Stainless Steel (SS 304) – cleanroom or bio labs
Utilities Provision:
- Integrated electrical trunking
Water & gas taps with concealed plumbing
Sink with bottle trap
Central reagent rack with 2-tier shelves and socket panel
Standard Dimensions (Custom sizes available):
Length
Depth
Height
2400 mm
1500 mm
900 mm
3000 mm
1500 mm
900 mm
3600 mm
1500 mm
900 mm
Each side: 750 mm depth
Reagent rack height: 600–900 mm above worktop
Color Options:
Cabinet Body: Light Grey, White, Blue-Grey, or Custom RAL shades
Worktop Finish: Black, White, Grey
Handles: Black, SS, Aluminium
Advantages:
Multi-user accessible
Maximizes lab floor area utilization
Central utility distribution reduces clutter
Modular design allows flexibility in layout
Easy under-bench maintenance access (with C-frame)
Applications:
R&D Laboratories
Chemistry and Biology Labs
Pharmaceutical Quality Control Labs
Petrochemical & Industrial Labs
Colleges, Schools, Universities
Contact:
Jay Veer Lab Solution
Odhav, Ahmedabad, Gujarat
www.jayveerlabsolution.com
info@jayveerlabsolution.com
+91-7622883053
