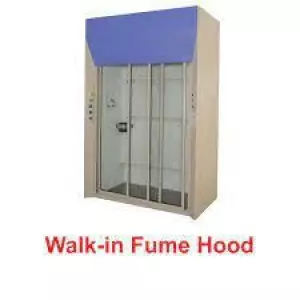

Walk-in Fume Hood

Product Overview:
The Walk-In Fume Hood by Jay Veer Lab Solution is specially designed for handling large-volume apparatus, tall distillation setups, drum storage, or pilot plant-scale experiments. With its full-height design, it allows users to walk into the fume hood while safely working with hazardous chemicals. Ideal for R&D labs, pharmaceutical industries, and chemical pilot plants.

 Key Features:
Structure & Design:

• Floor-mounted, full-height enclosure (2000–2400 mm usable height)
  Extra-large frontal opening for equipment loading
  Double-leaf vertical sash or sliding doors
  Available in ducted or ductless configuration
  Body Construction:
• CRCA / GI Sheet with Epoxy Powder Coating (60–70 microns)
  Optional: Full SS 304 or FRP-lined versions for corrosive environments
  Work Floor Surface (Optional):
• Acid-resistant tile base
  SS 304 tray flooring
  Epoxy-coated floor pan with chemical resistance
  Inner Chamber Lining:
• PP Sheet / FRP Lining / Epoxy Coating / SS 304
  Chemical & flame resistant
  Sash / Door:
• Toughened Glass Sliding / Vertical Panels
  Counter-weighted OR Manual sliding
  Optional: Auto sash closing or motorized doors
  Lighting:
• LED vapor-proof fixture
  ≥ 400 Lux illumination inside the hood
  Air Management:
• Face velocity: 80–120 FPM
  2/3-point baffle system for effective airflow
  Optional: VAV system integration
  Utility Options:
• Electrical sockets (15A/5A) with MCB
  Water/gas/air taps
  PP or SS sink with bottle trap
  Reagent/chemical drum racks (customized)
  Exhaust System:
• PP/FRP/SS Centrifugal Blower (acid/alkali proof)
  Ducting material: PP/FRP/HDPE/GI – as per application

Standard Sizes (Custom builds available):
Model
Width
Depth
Height
WIFH-1200
1200 mm
900 mm
2100 mm
WIFH-1500
1500 mm
1000 mm
2400 mm
WIFH-1800
1800 mm
1000 mm
2400 mm
Custom
As required
As required
Up to 3000 mm

 Large-sized walk-in hoods can be built for equipment heights up to 6 feet or more.

 Color & Finish:
Body: White / Grey / Blue-Grey / Custom RAL shades
Lining: Black, White, or Custom (based on material)
Branding: With Jay Veer Lab Solution label or logo sticker

 Standards & Safety:

Flame-retardant and acid-resistant internal lining
Optional airflow monitor, emergency switch, sash alarm
CE-rated electrical and blower components

 Applications:
Pilot plants and chemical testing
Pharma R&D and kilo labs
Agrochemical drum storage & transfer
Petroleum and gas cylinder experiments
Tall distillation & chromatography setup labs
