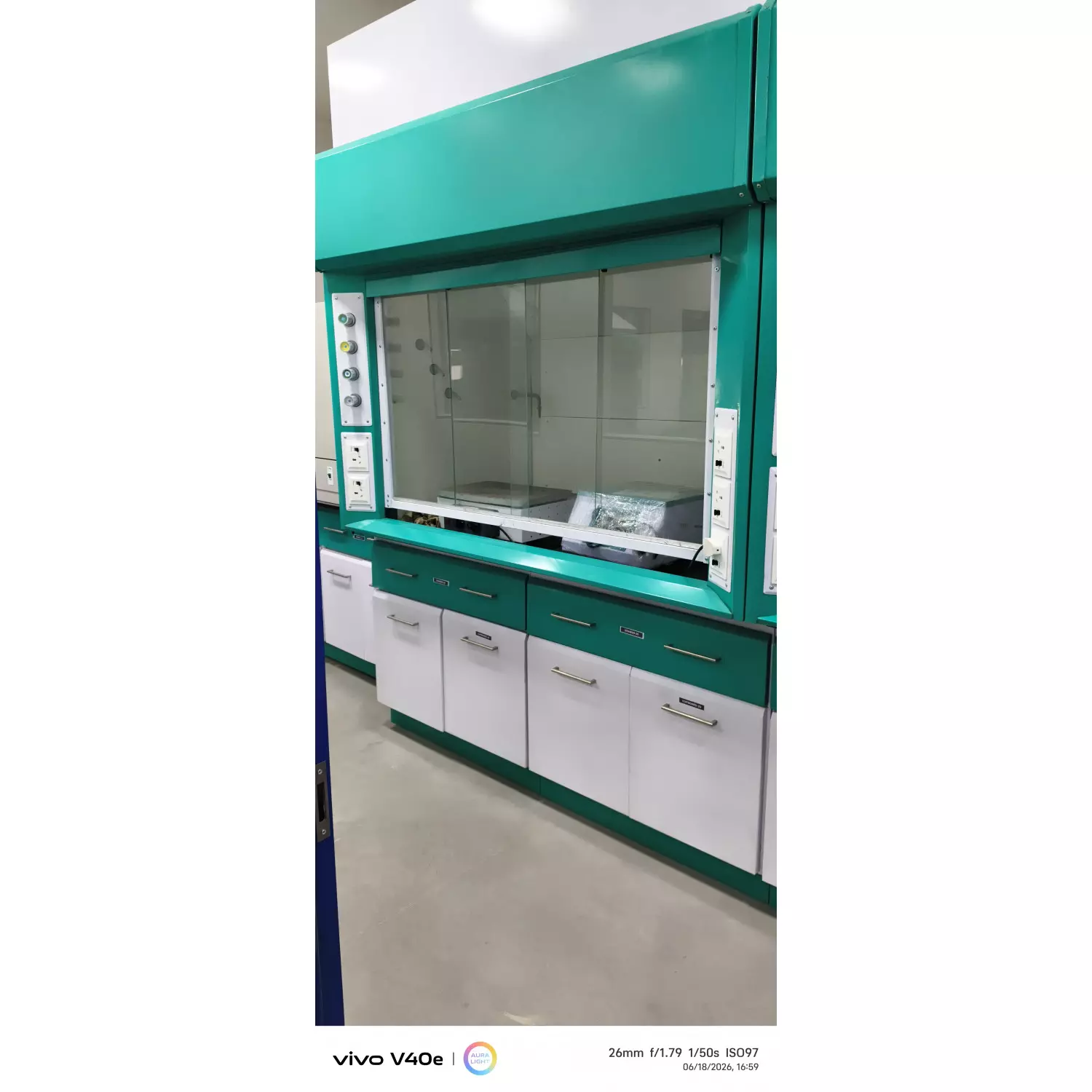

Laboratory Fume Hood

 Product Overview:
Jay Veer Lab Solution’s Laboratory Fume Hood is engineered for user safety during chemical experiments by effectively ventilating toxic fumes, vapors, and dust. Designed for durability, performance, and ease of maintenance, it conforms to international safety and testing standards such as ASHRAE 110 and SEFA 1.

•
   Key Features:
  Body Construction:
• CRCA / GI Sheet with Epoxy Powder Coating (60–70 microns)
  Optional: SS 304 body for corrosive environments
  Aerodynamically designed airflow for safe containment
  Worktop Options:
• Granite (18–20 mm) – standard
  Epoxy Resin / Phenolic Resin – chemical resistant
  SS 304 / Ceramic Tiles – optional
  Raised edge with spill-containment groove
  Inner Chamber Lining:
• PP Sheet / FRP Lining / SS Lining / Epoxy Coating
  Chemical-resistant and flame-retardant options
  Sash (Shutter):
• Vertical sliding sash with counterweight balance
  Material: 5–6 mm Toughened Glass or Polycarbonate
  Manual or motorized operation (optional)
  Lighting:
• LED light with vapour-proof enclosure
  Light intensity: ≥ 400 Lux
  Baffle System:
• 2- or 3-point adjustable baffle for uniform airflow
  Utilities & Safety:
• Water tap, gas tap, air valve
  Electrical sockets (15A/5A) with safety MCB
  Sink with PP bottle trap
  Airflow monitor (optional)
  Face velocity: 80–120 FPM (as per ASHRAE 110)
  Exhaust System:
• PP/FRP/SS Blower with acid-resistant coating
  Ducting in PP/FRP/HDPE/GI (as per application)

   Standard Sizes (customization available):
  Model
  Width
  Depth
  Height
  JVFH-1200
  1200 mm
  750 mm
  2400 mm
  JVFH-1500
  1500 mm
  800 mm
  2400 mm
  JVFH-1800
  1800 mm
  800 mm
  2400 mm

   Custom sizes for walk-in fume hoods or ductless models available.

   Color Options:
  Exterior: Light Grey, White, Blue-Grey, Custom RAL
  Interior: White / Black / Blue (based on lining material)
  Branding: With Jay Veer Lab Solution logo and custom labels

   Compliance & Testing:

  CE-compatible electrical fittings
  Safe face velocity with optional airflow alarm system

   Applications:
  Pharmaceuticals QC/QA Labs
  Chemical & Petrochemical Labs
  Research & Development Centers
  Agrochemical Industries
  Educational Institutions
