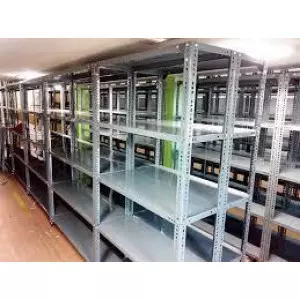

Slotted Angle Rack

 Key Features:
Material of Construction:

• Upright Supports: CRCA / GI powder-coated / SS 304 grade
  Shelves:
• 6 mm or 8 mm Toughened Glass
  SS Tray-type Shelves (Optional)
  Powder-coated MS Shelf with raised edges
  Dimensions (standard options):
• Height: 750 mm – 900 mm
  Width: 900 mm / 1200 mm / 1500 mm
  Depth: 250 mm – 300 mm
  (Custom sizes available)
  Structure:
• Uprights with perforated slots at 25 mm pitch
  Shelves mounted using brackets (L-type or cantilever)
  Finish Options:
• Epoxy Powder Coated (60-80 microns)
  Anti-rust Zinc Coated
  Brushed Finish (for SS)
  Mounting Type:
• Bench-top Mounted (on Island or Wall Bench)
  Wall-fixed (optional)
  Adjustability:
• Shelves can be repositioned at different heights
  Can accommodate accessories like utility raceways, lights
  Optional Utilities:
• Electrical sockets and switch panels
  LED Lighting under shelves
  Branding Label Panel on front

   Advantages:
  Easy height adjustment for variable bottle sizes
  Heavy-duty load bearing (~15–25 kg per shelf)
  Chemical-resistant materials
  Neat and organized workspace
  Expandable and modular

   Usage Areas:
  QC and QA Labs
  R&D Facilities
  Chemical Testing Labs
  Educational Science Labs
  Pharma & Agrochemical Labs
