✅ Product Description

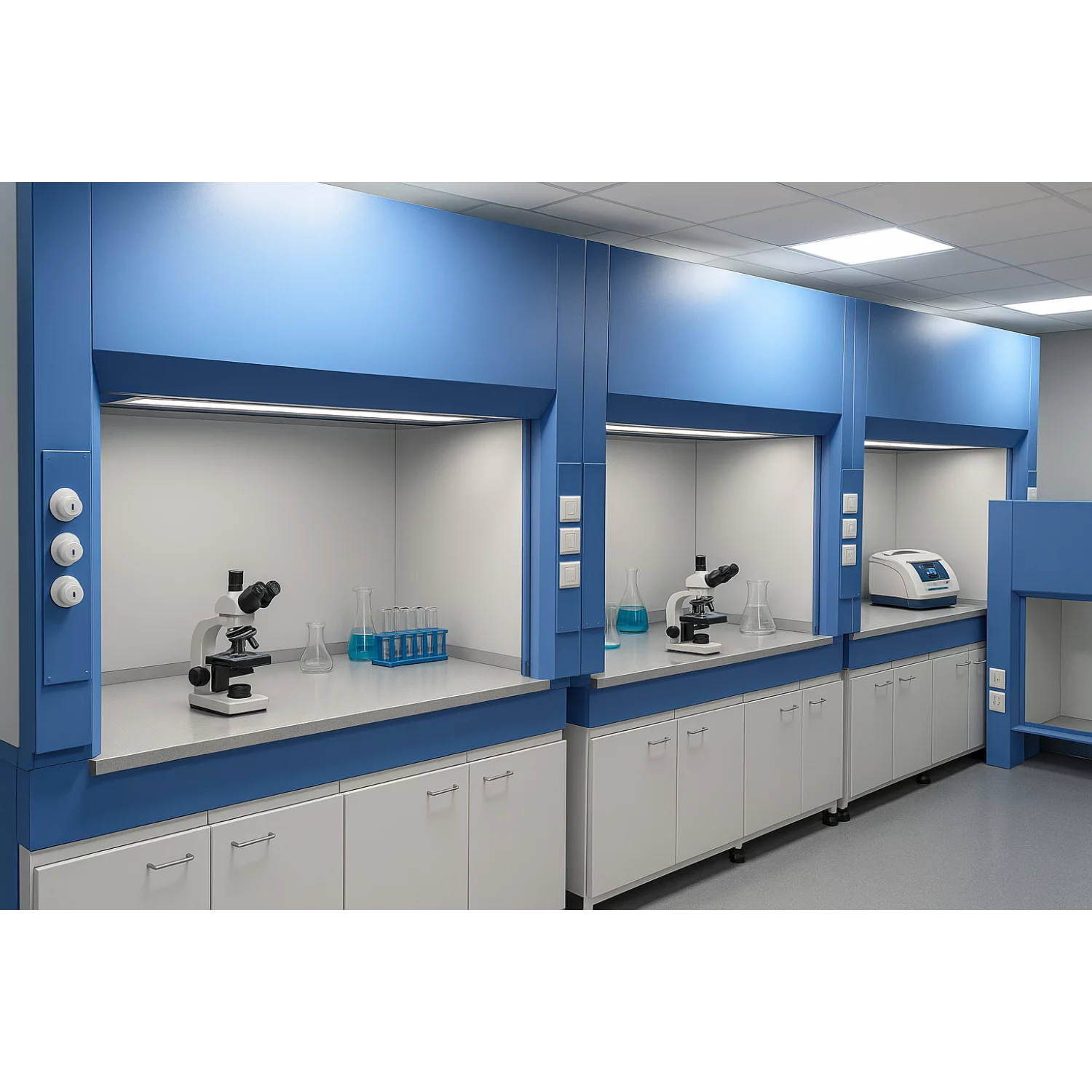

Jay Veer Lab Solution’s Laboratory Fume Hoods are engineered to provide a ventilated enclosure that safely contains and expels hazardous fumes, vapors, and dust. Designed for user protection in chemical and pharmaceutical labs.
🧩 Key Features
Design Type:
Bench Top / Floor Mounted
Ducted / Ductless Type
Fume Containment:
100 FPM face velocity
Airflow monitor display (optional)
Sash Type:
Vertical rising sash (Tempered glass)
Counterbalanced with stainless steel rope
Worktop Options:
Epoxy Resin / Granite / Ceramic / Stainless Steel
Inner Lining:
Chemical-resistant PP / FRP / Phenolic Resin
Lighting:
LED light (Waterproof & vapor-proof)
Services:
Gas tap, water tap, and sink (PP or SS)
Power & Controls:
Switches for fan, light, and exhaust
Optional digital airflow controller
📐 Available Sizes
(Standard and Custom options available)
Width: 900mm / 1200mm / 1500mm / 1800mm
Depth: 750mm
Height: 2400mm (with base cabinet) Custom sizes available on request
⚙️ Technical Specifications
Component | Specification / Material |
---|---|
Outer Body | CRCA GI sheet, Epoxy Powder Coated |
Inner Chamber | PP / FRP / Phenolic / SS304 |
Sash | 5mm Toughened Glass (Vertical Sliding) |
Work Surface | Jet Black Granite / Epoxy Resin |
Base Cabinet (Optional) | Chemical Storage Cabinet with Exhaust |
Lighting | LED Tube Light, 20W Vapor-proof |
Airflow | 100 ±10 FPM (Tested as per ASHRAE 110) |
Fan Type | Centrifugal Blower / EC Fan |
Control Panel | MCB, Indicator, Fan & Light Switches |
